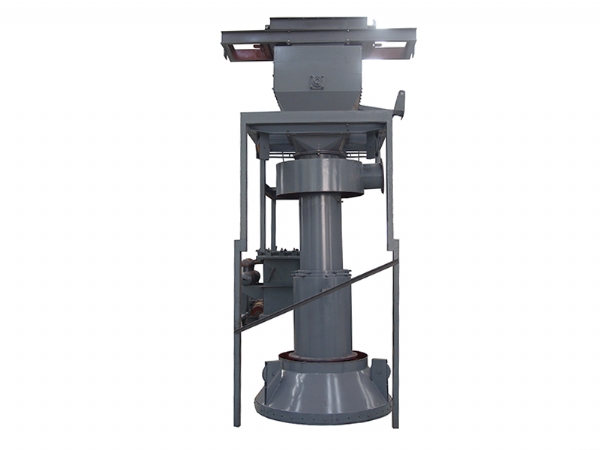

Clinker bulk loader

Production characteristics:

SZ bulk machine is a special equipment for bulk dry powder mortar, cement and clinker. It can be used with the unloading equipment at the side or bottom of the warehouse to realize automatic or semi-automatic delivery of bulk cement, clinker and dry powder mortar.

The machine is mainly composed of winding device, telescopic loading head, dust collector, material level meter and electrical control cabinet. This machine has the characteristics of sensitive level control, smooth discharge, low resistance, high efficiency, environmental protection and no dust. After years of production improvement by our company, this product can not only be used in cement system, but also be used for loading and shipment of powder materials in building materials, metallurgy, coal, chemical industry and other departments.

Main technical performance of SZ bulk loader:

1. Application: bulk cement and similar powder materials

2. Capacity: 60 ~ 150m 3/ h

3. Telescopic length of loading head: determined according to the actual situation

4. Telescopic speed of loading head: ~ 8m / min

Lifting motor model: yej90l-6

Power: 1.1kw

Speed: 910r / min

Reducer model: wht100-50-ii

Input power: 1.1kw

Transmission ratio: 50

5. Micro pressure level model: sly-40

Exhaust pressure: ≥ 0.1MPa
